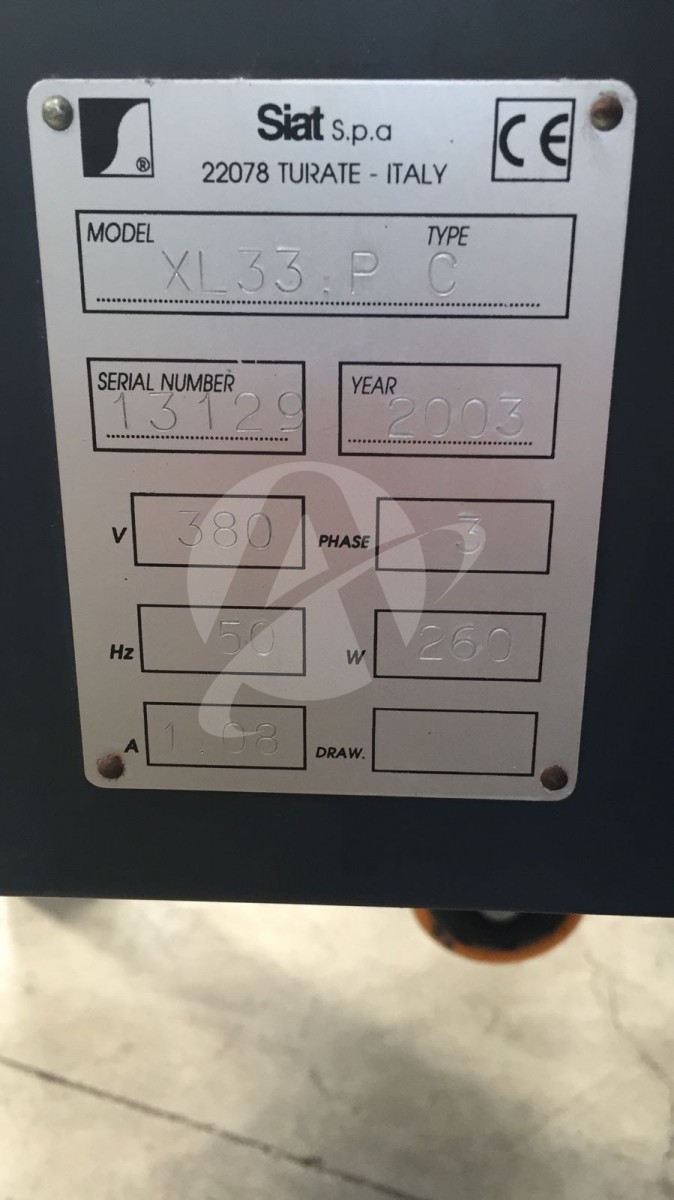

CASE SEALER SIAT XL33-P C

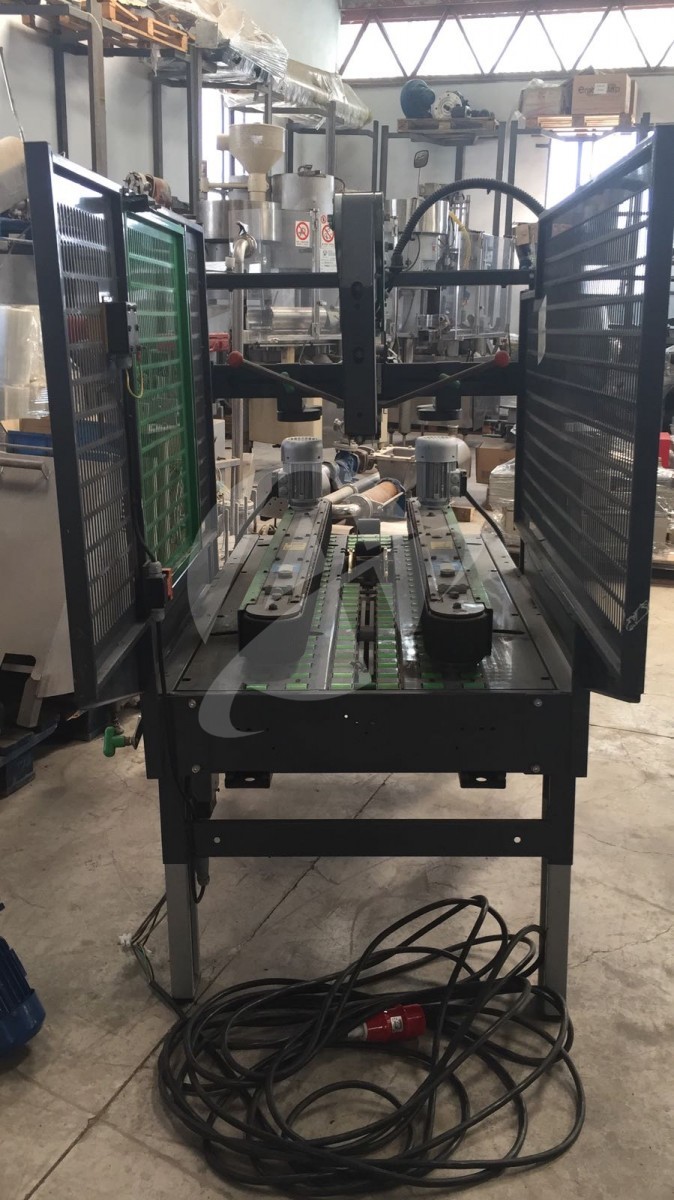

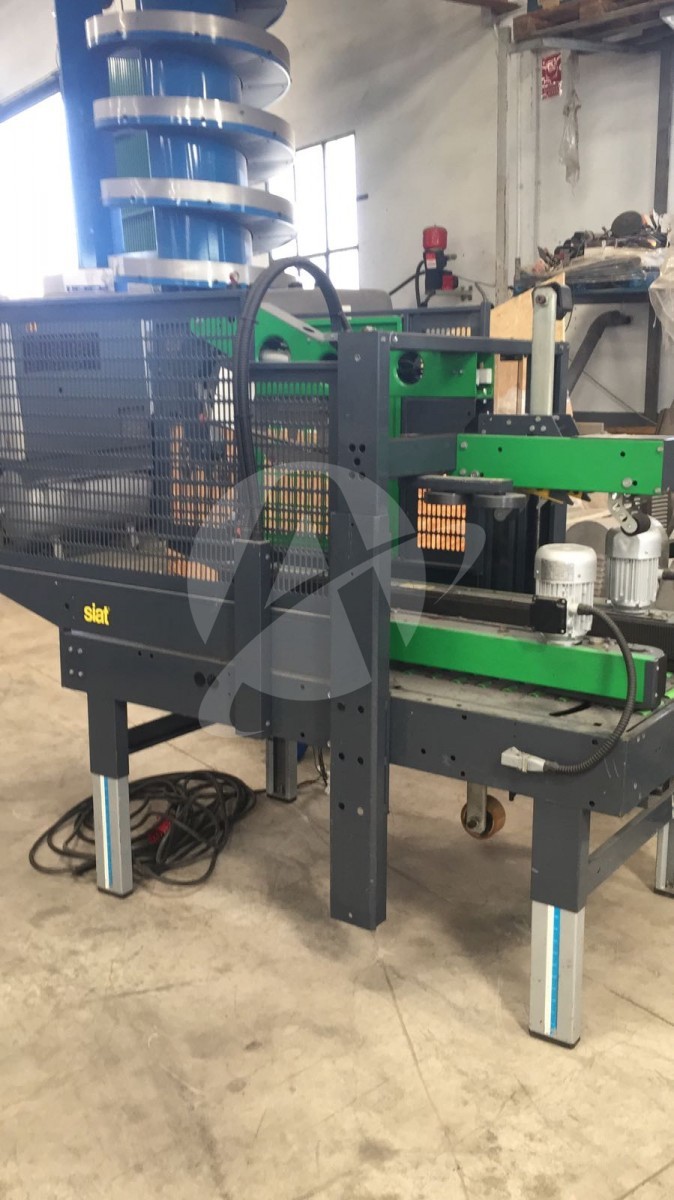

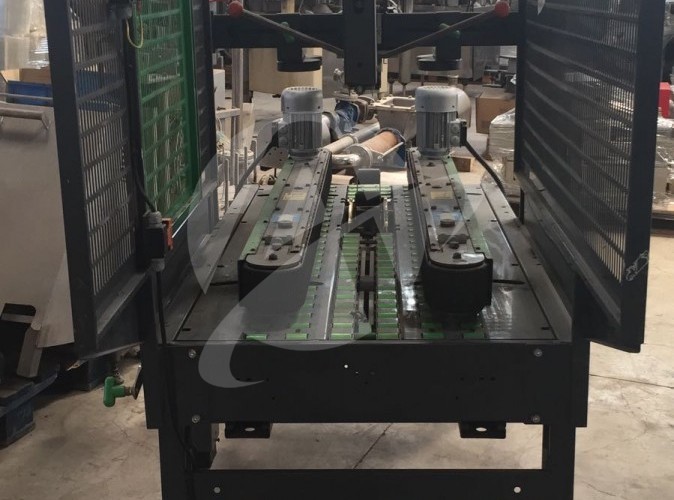

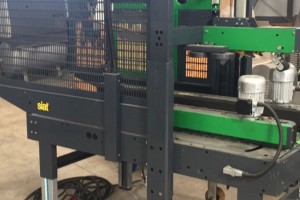

Automatic case sealing machine SIAT model XL33-P, Type C, with side drive belts and manual box-size adjustment.
Production: 600 boxes/hour aprox.

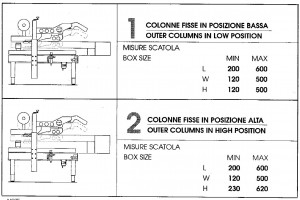

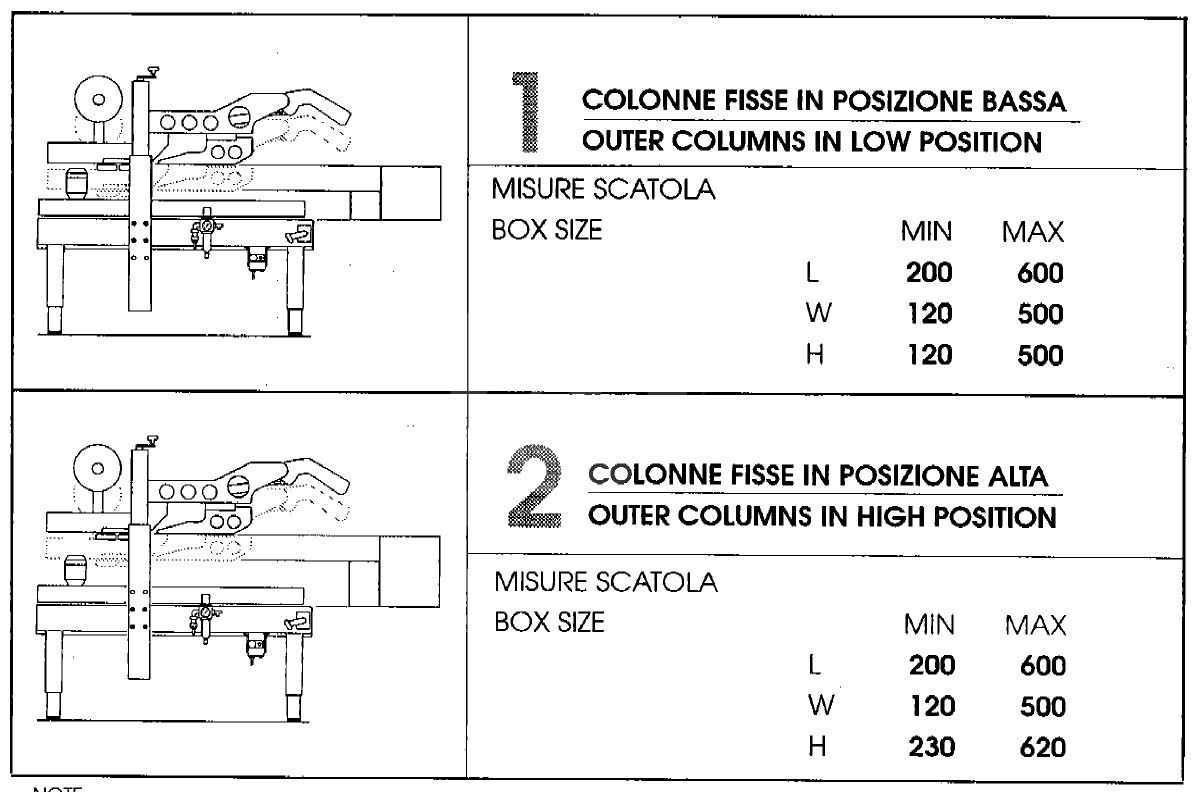

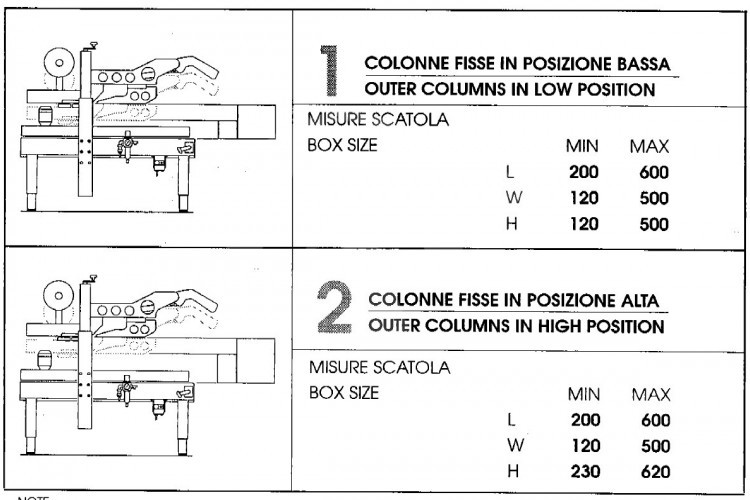

Maximum box size:
- Length: 600 mm
- Height: 500 mm
- Width: 500 mm

Adhesive tape wide 50/75 mm
Belt speed: 22m/min

Machine overall dimensions:
-Length:1915 mm
-Width: 905 mm
-Height: Min.1360 mm - Max.2010 mm
Weight kg: 198 Kg

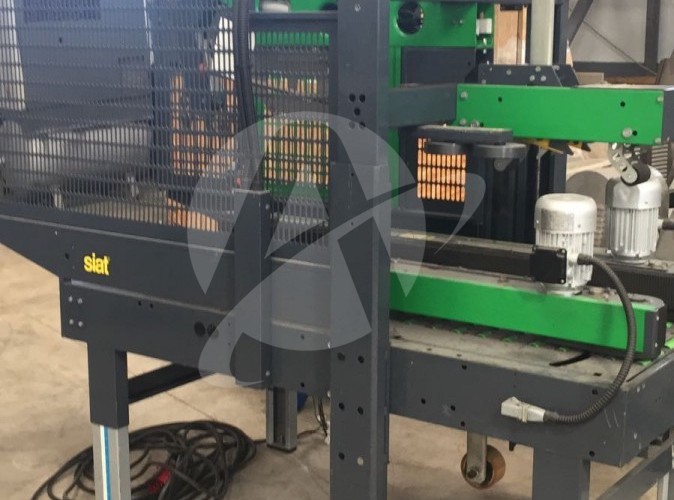

The machine is composed of:
-Frame
-Adjustable legs
-Columns
-Taping units
-Top head

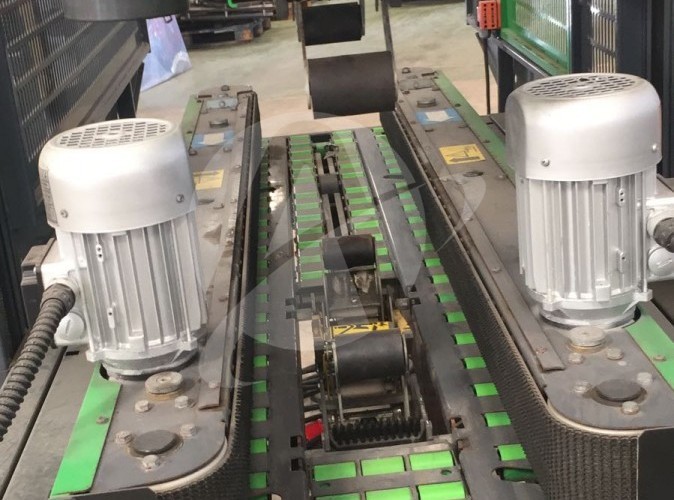

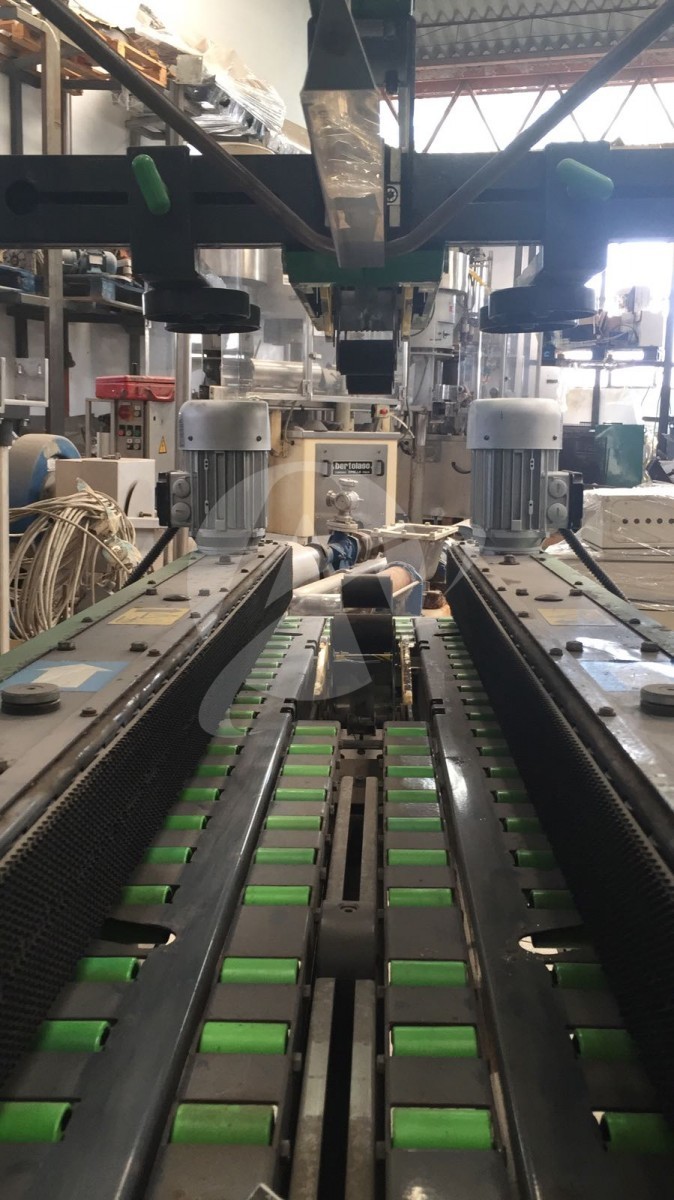

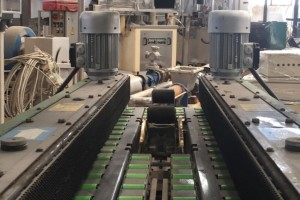

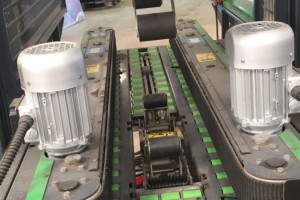

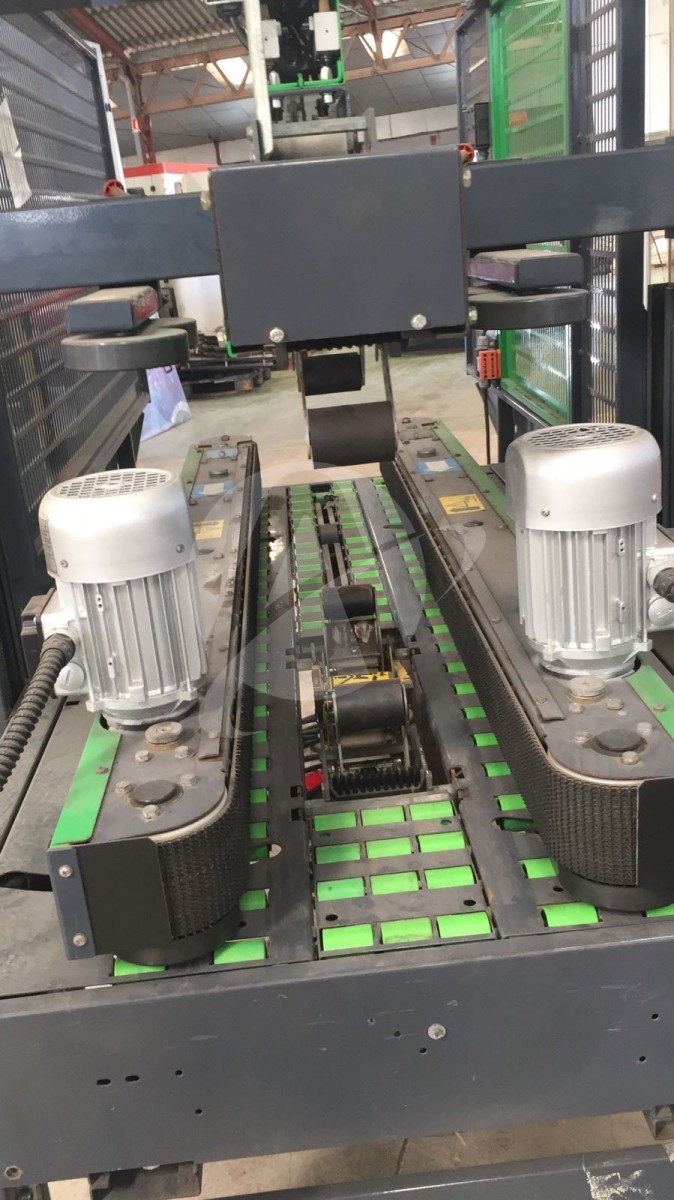

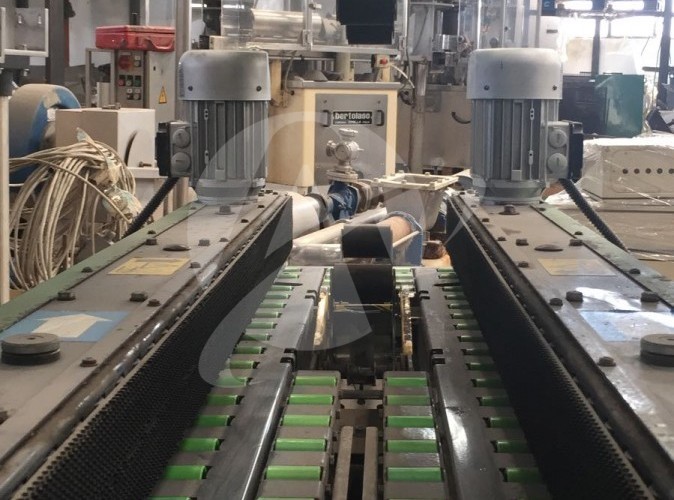

-Side drive belts

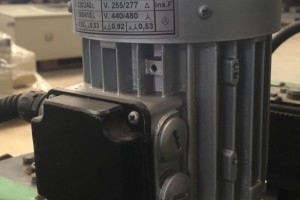

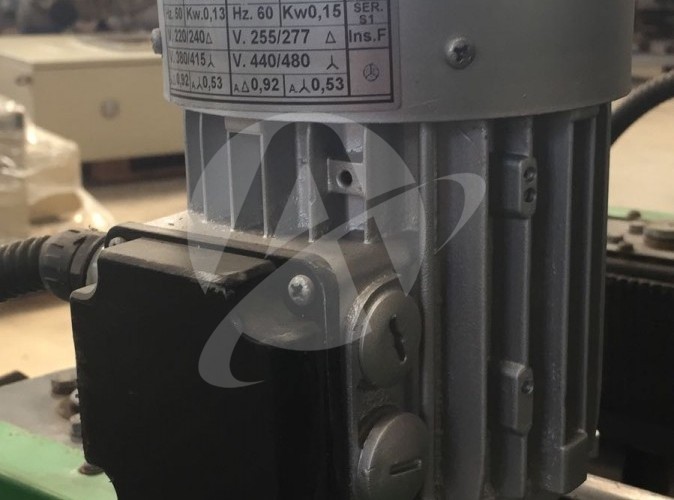

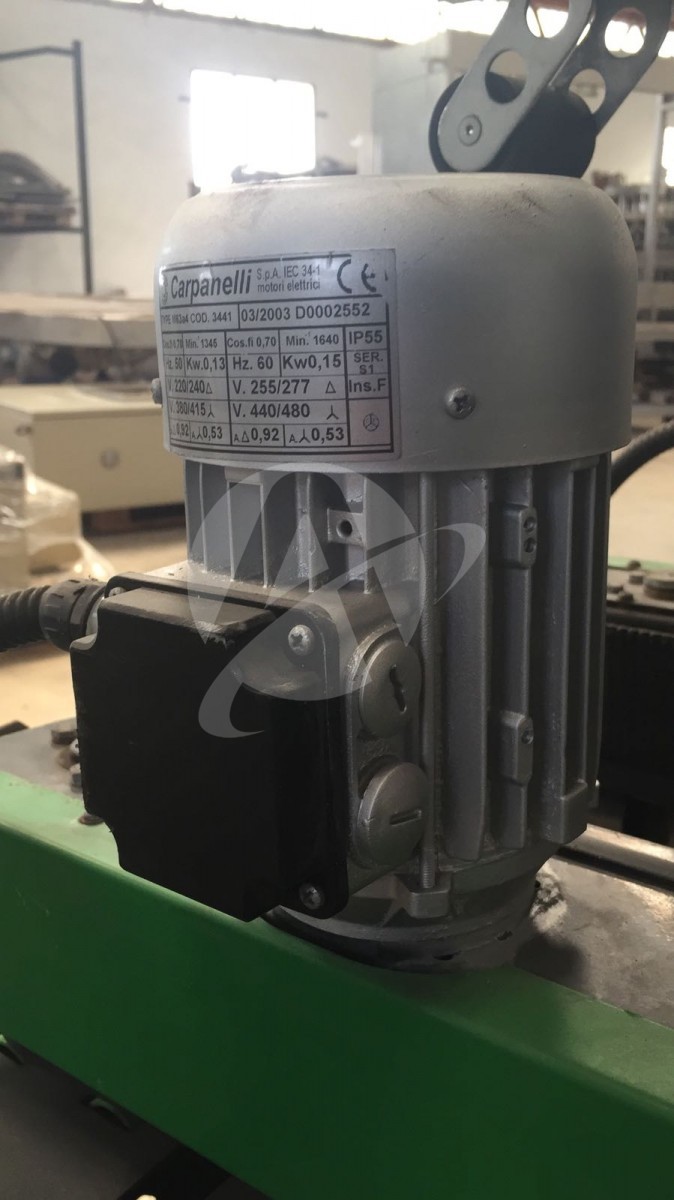

-Electric motors

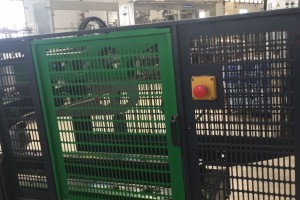

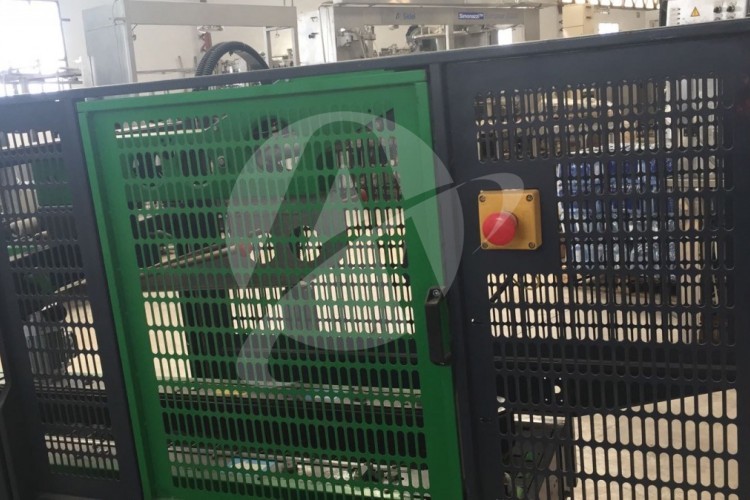

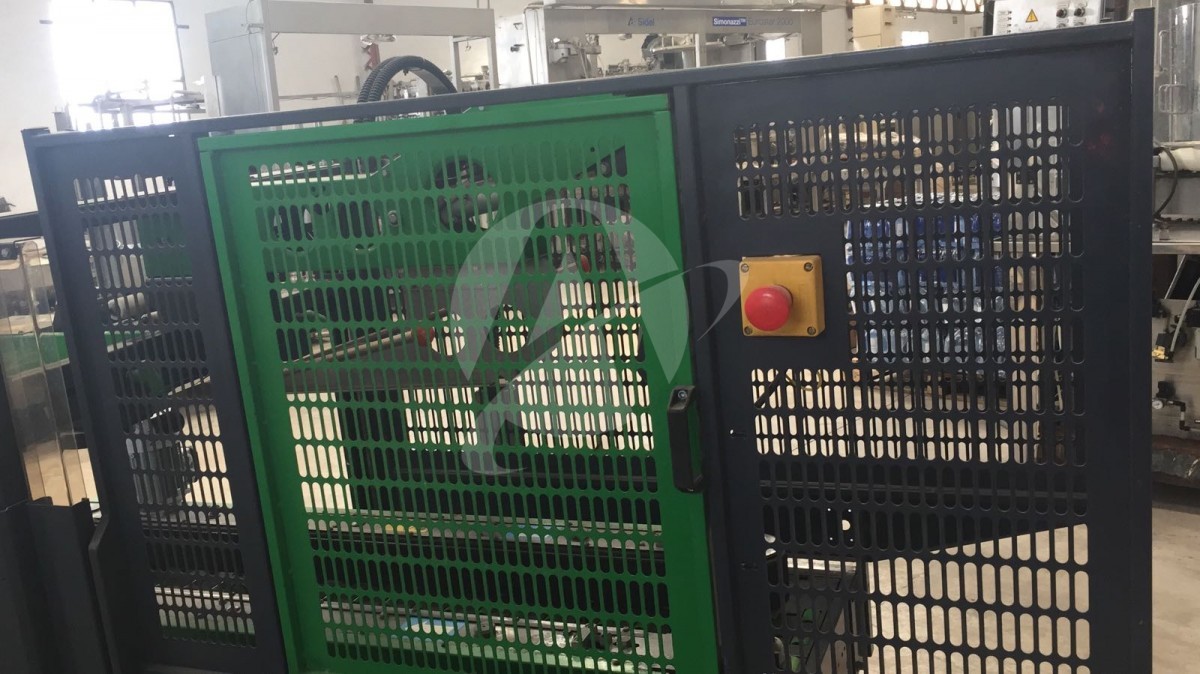

-Emergency stop button
-Main switch ON/OFF
-Air pressure regulator

Complete documentation available.
