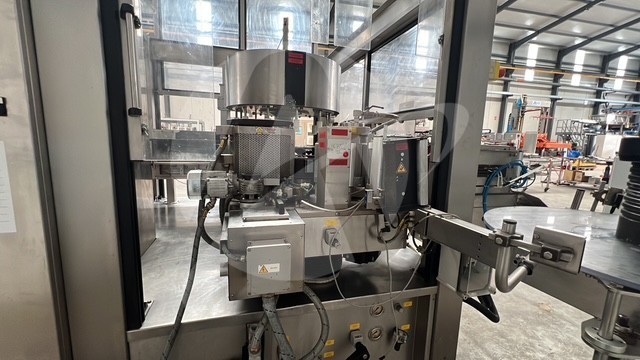

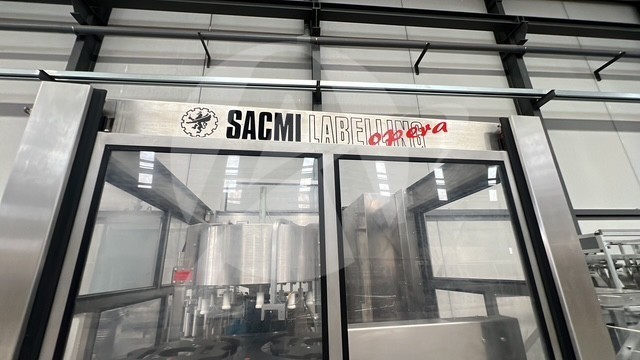

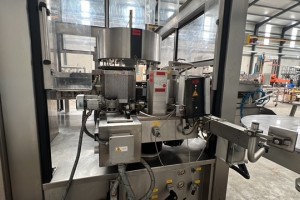

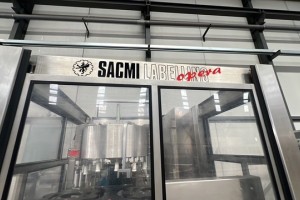

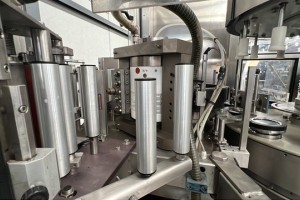

SACMI OPERA LABELLING MACHINE

MACHINE CHARACTERISTICS

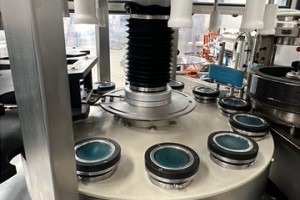

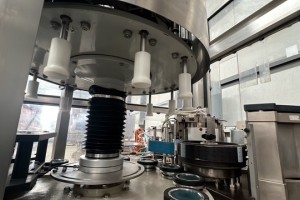

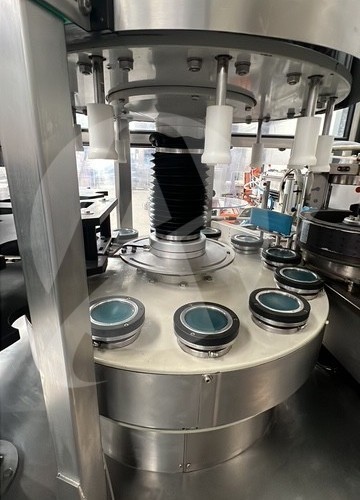

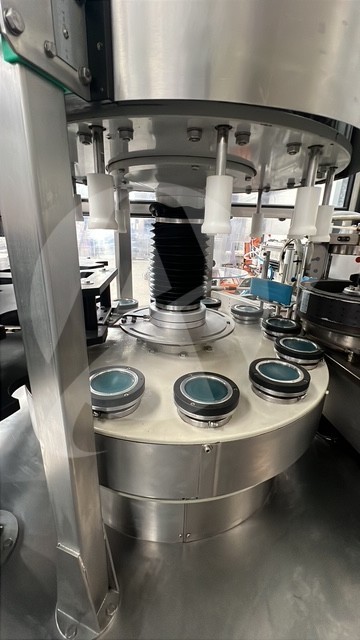

Primitive carousel diameter: 720 mm
Pitch of the machine: 188,50 mm
Number of discs: 12

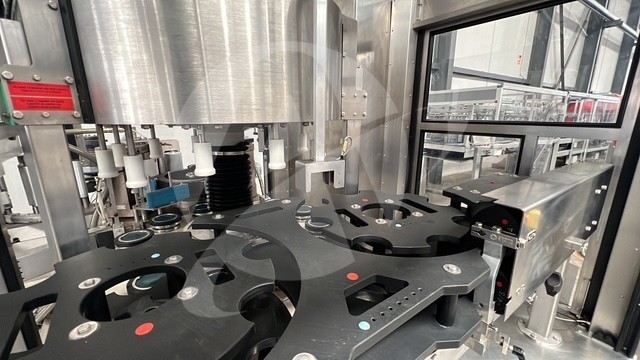

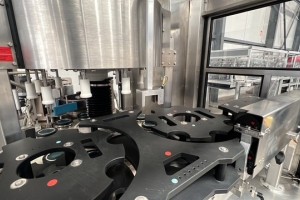

Primitive stars diameter: 480 mm
Star divisions: 8
Transfer cylinder divisions: 2
Cutting cylinder divisions: 1

PACKAGING
Min-max pack diameter: 55-115 mm
Min-max pack height: 150-370 ±2.5 mm

LABEL
Min-max label length: 185-375 0/+0.5% mm
Min-max label height: 30-175 ±0.5 mm
Minimum gluing height from the bottom of the container: 15 mm
Outer reel diameter: 600 mm
Inner reel diameter: 152 0/+2.5 mm

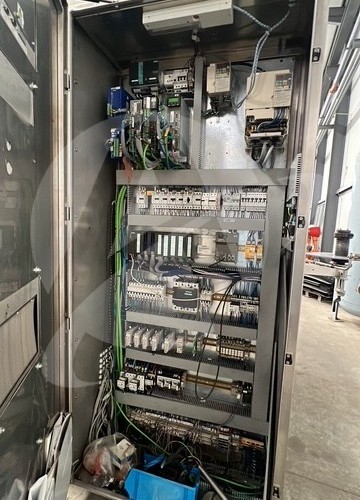

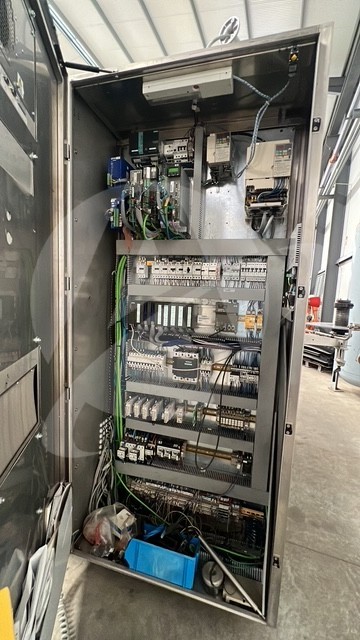

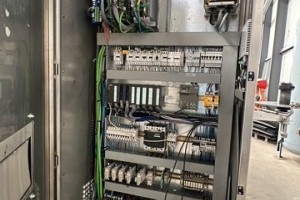

ELECTRICAL DATA
Voltage V 400 +10/-5%.
Frequency Hz 50/60
Auxiliary voltage Vdc 24
Rated power KW 25
Rated current A 40

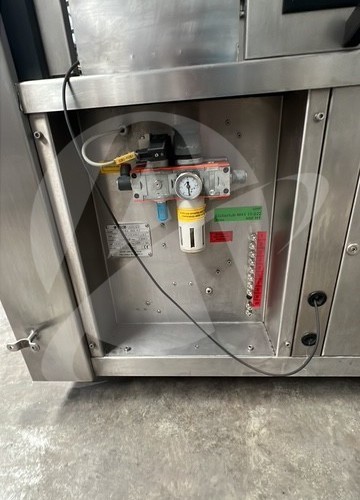

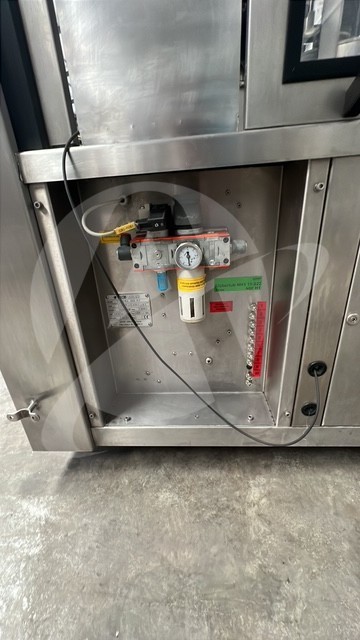

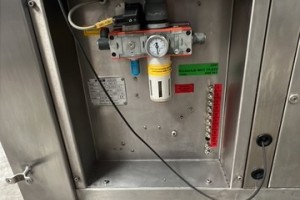

COMPRESSED AIR
Pressure min-max bar 5,5-7
Air consumption Nl/1' 200
PRODUCTION

MASS Kg 3550
