HIGH PRESSURE
Ref: 490

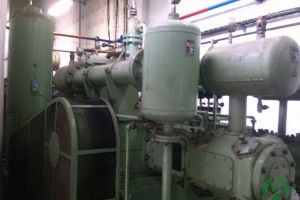

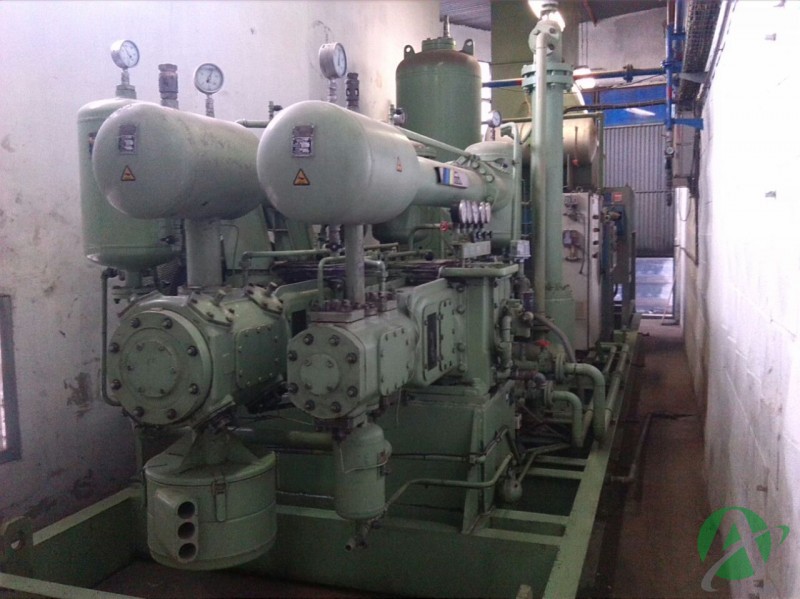

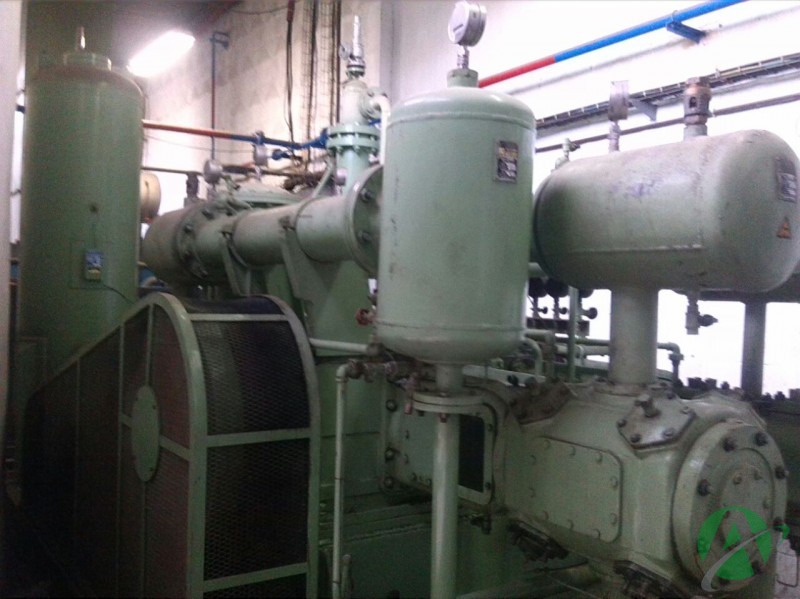

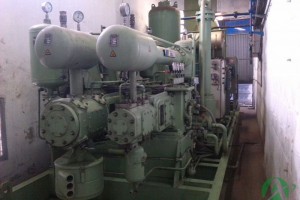

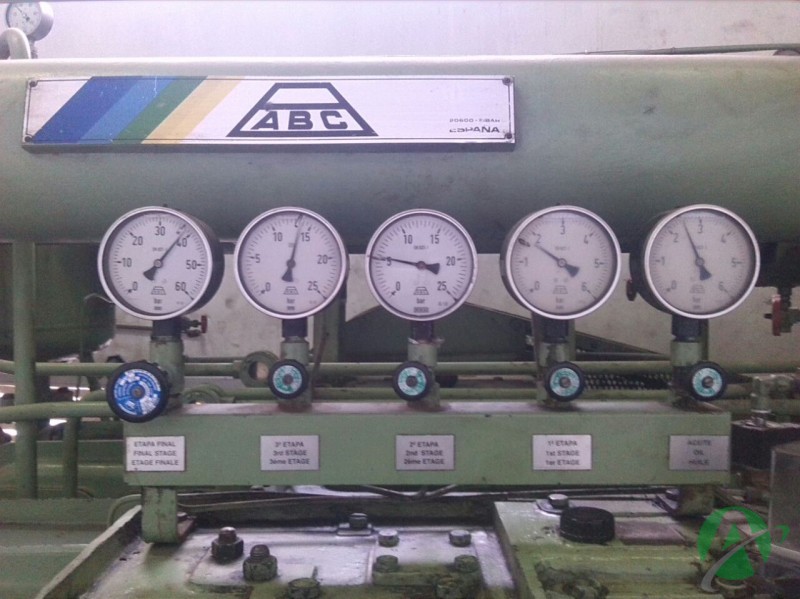

High pressure air compressor
Nominal pressure: 42 bar
Motor power: 150/110 CV/KW
R.P.M.: 740
Fluid: Air
Flow in Nm3 / hour: 530
Power consumption in crankshaft CV / KW: 133.6 / 98.3
Transmission: Belts
Oil on cylinders: no
Number of stages: 4
1st stage cylinder Ø in mm: 250
2nd stage cylinder Ø in mm: 160
3rd stage cylinder Ø in mm: 105
4th stage cylinder Ø in mm: 75
Stroke of the pistons in mm: 150
Cooling water flow compressor in m3 / h: 7
Regulating air pressure in bar: 8
Motor weight in kg: 830
Mass of the entire unit in kg: 8600
Ambient temperature min / max ºC: 0/40
Cooling water temperature min / max ºC: 5/48
Tension force in volts: 380
Control voltage in Volts: 220
Frequency in Hz: 50
Total power installed HP / KW: 160/118
NOT AVAILABLE
