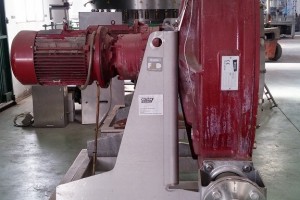

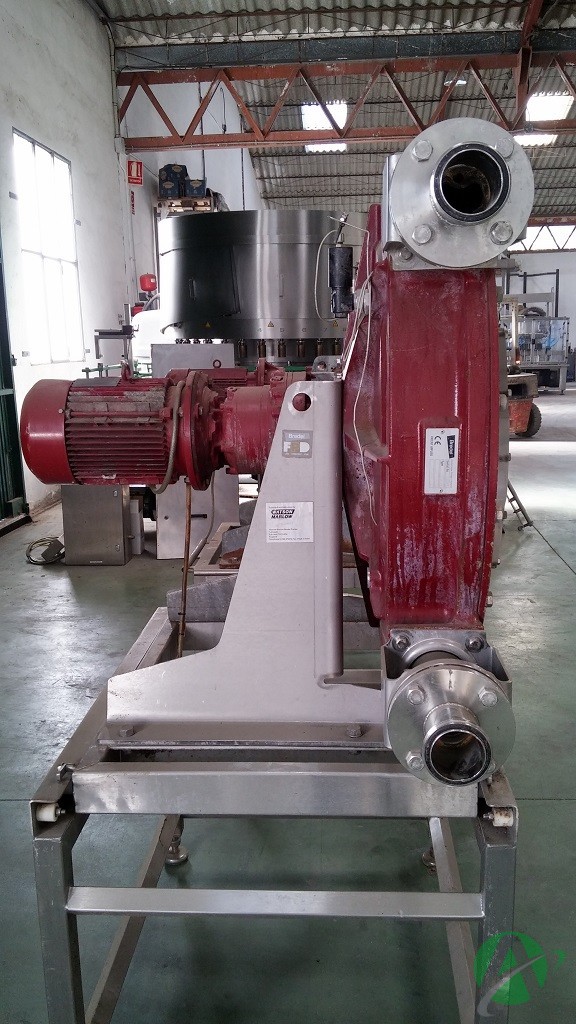

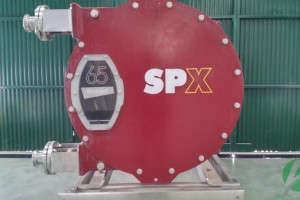

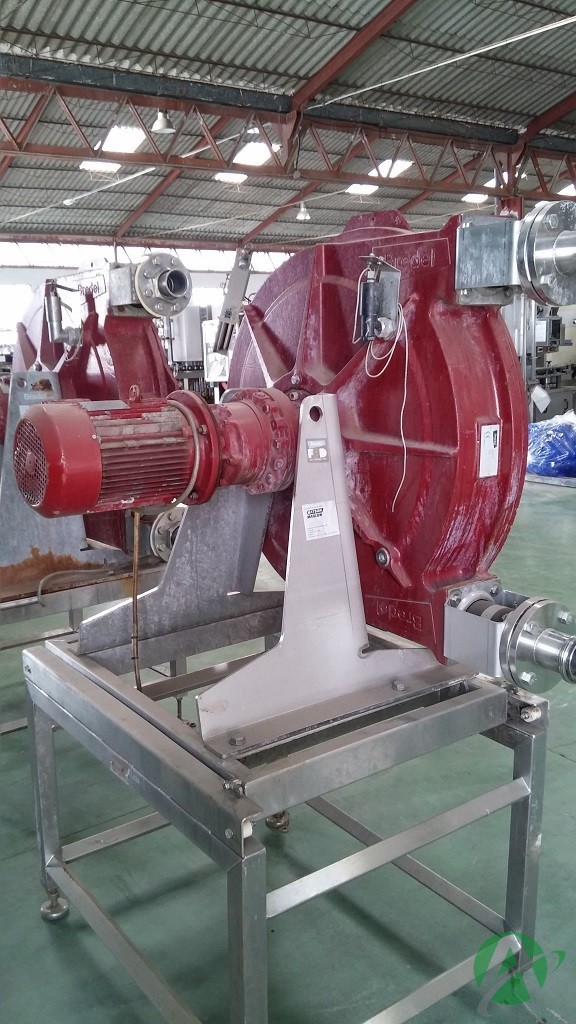

Peristaltic pump Bredel SPX65

Peristaltic pump with a single high capacity direct drive design, which combines the small size of the closed with the reliability and ease of use of pumps with universal coupling. It has robust bearings located in the center of the pump rotor, eliminating radial loads. The ultra-compact, high torque gearbox is aligned directly with the pump housing, being fully protected by an innovative buffer zone

These pumps can be used, among others, in the food industry and beverage as CIP applications, wine, beer, dairy, bakery, flavorings and additives.

Technical characteristics:

Maximum flow rate: 32,200 l / h

Capacity: 6.7 l / rev

Maximum discharge pressure: 16 bar

Maximum temperature: 80 ° C

Pumping element inner diameter: 65 mm

Lubricant required: 20 liters

Starting torque: 1150 Nm
