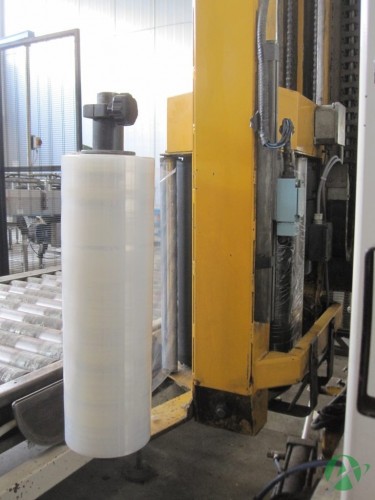

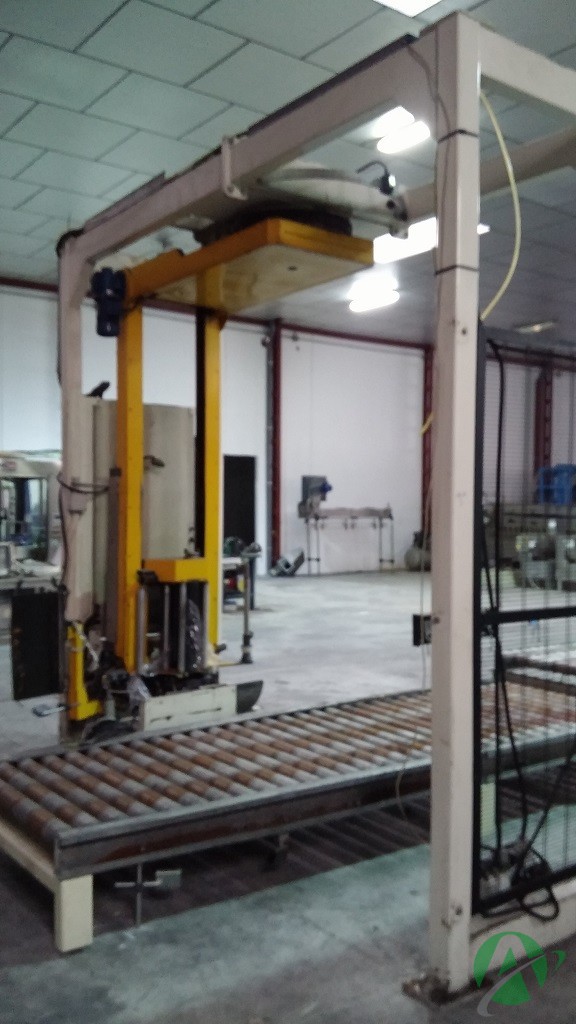

Pallet wrapper Tosa 121

The machine performs the envelope with still pallet by rotating the spool arm and allows a steady and compact packing of all sorts of palletized products with a multilayer wrapping made with stretch film. The machine is suitable for light and unstable loads. It can be incorporated into existing lines.

Characteristics:

-Speed Up / down the spiral wrap with adjustable frequency inverter

-Regulation Film tension

-Dispositiva Cutting and automatic film hitch

- The rotary arm start and stop at low speed

- Automatic photocell for height of the pallet height

Technical data:

Maximum pallet dimensions: 1000 x 1200 x 2000H mm

Air consumption: 16.5 Nl / min. Cycle

Production: 30/60 pallets / hour

Film for self-tie on wrapping extensible coil Maximum diameter 350 mm
