ENVASTRONIC E3BT8AC

Ref: 209

Brand: ENVASTRONIC
Model: E3BT8AC
Speed: 10000 PACKS/HOUR
Format: 500 ML AND 1 LITER
Number: OC635
Year: 2002
Condition: VERY GOOD
Characteristics:

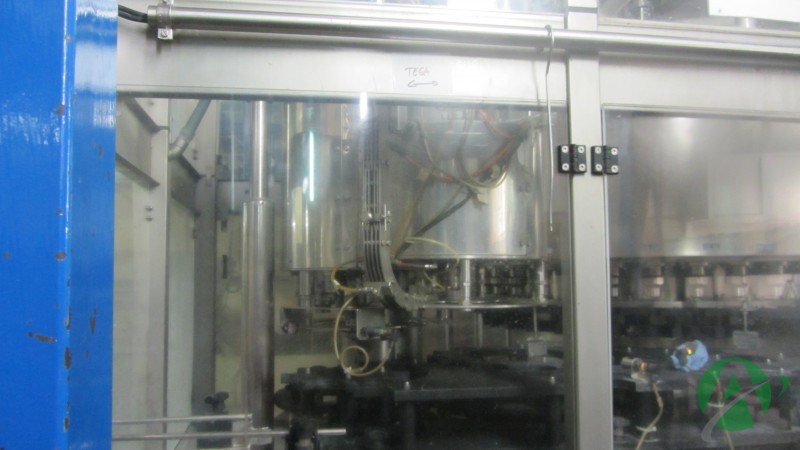

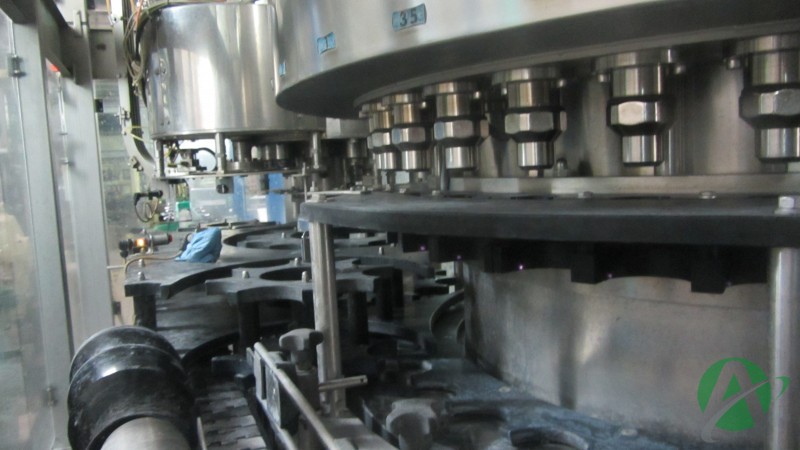

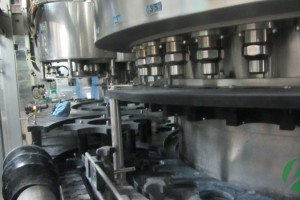

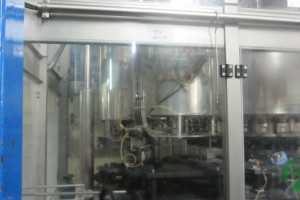

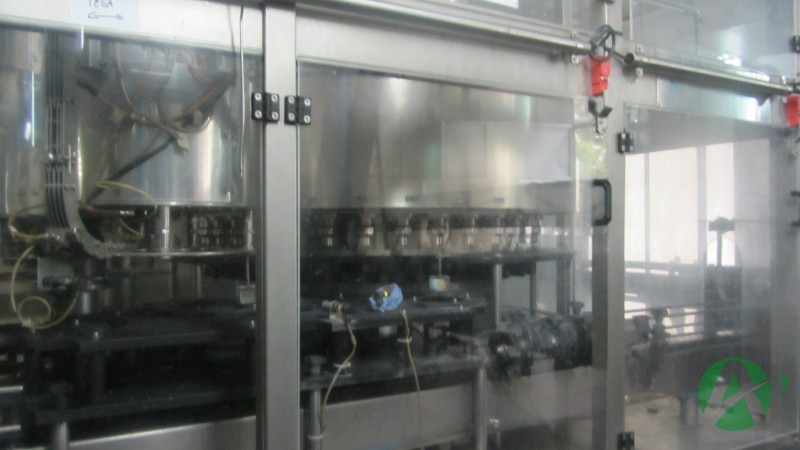

 Monoblock for filling and capping in glass bottle. It can fill water, milk, juice, etc. It has 35 filling valves and 8 capping heads from make Arol. It has also electronic filling with flow meters.

Technical data:

-filling system: gravity

-valve-type; optoelectronic level control system

-closure system: crown cap

-No. filler-valves: 35

- No. head capper: 8

-No. hollow-star and out 8

-No. intermediate-star holes: 14

-module group: 36

-width of the conveyor chain: 82.5 mm

- inlet direction: right-left

-inlet spindle: yes

-height tank filler: adjustable by servomotor

-capacity tank filler: 200 liters with level of 200 mm

-diameter pipe feeding the product: NW50 (50 x 52 mm)

-head height of the capper: adjustable by servomotor

-speed control: by frequency converter between 2,600 and 16,000 B / H

-maximum-diameter containers to be used: 95 mm

-height of the containers to be used: 360 mm - 140 mm

-air-outlet: ¼ "Gas

-air-pressure network 8 Kg/cm1

-pressure of the pneumatic circuit: 5 Kg/cm2 for the filling; And rest for 6 Kg/cm2

electric-voltage: 380 V. III

-mains-frequency: 50 Hz

-total installed-power: 7.9 Kw



-frequency converter control techniques SE2D200220
