SOLD Sorsa PFH900G

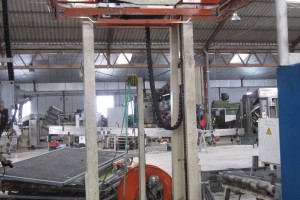

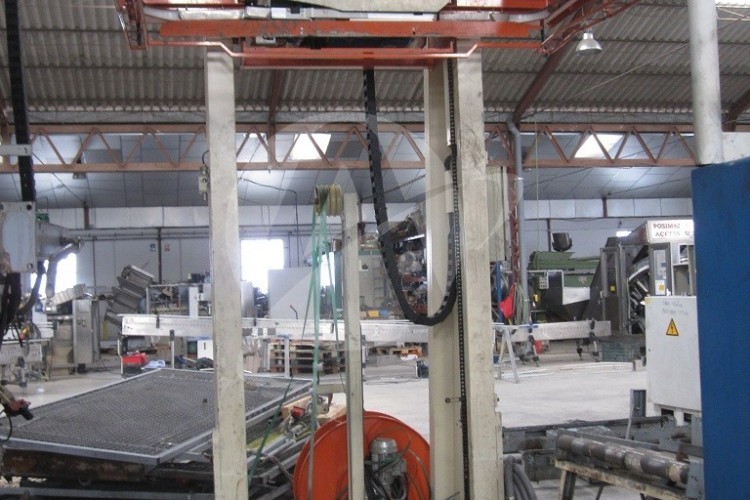

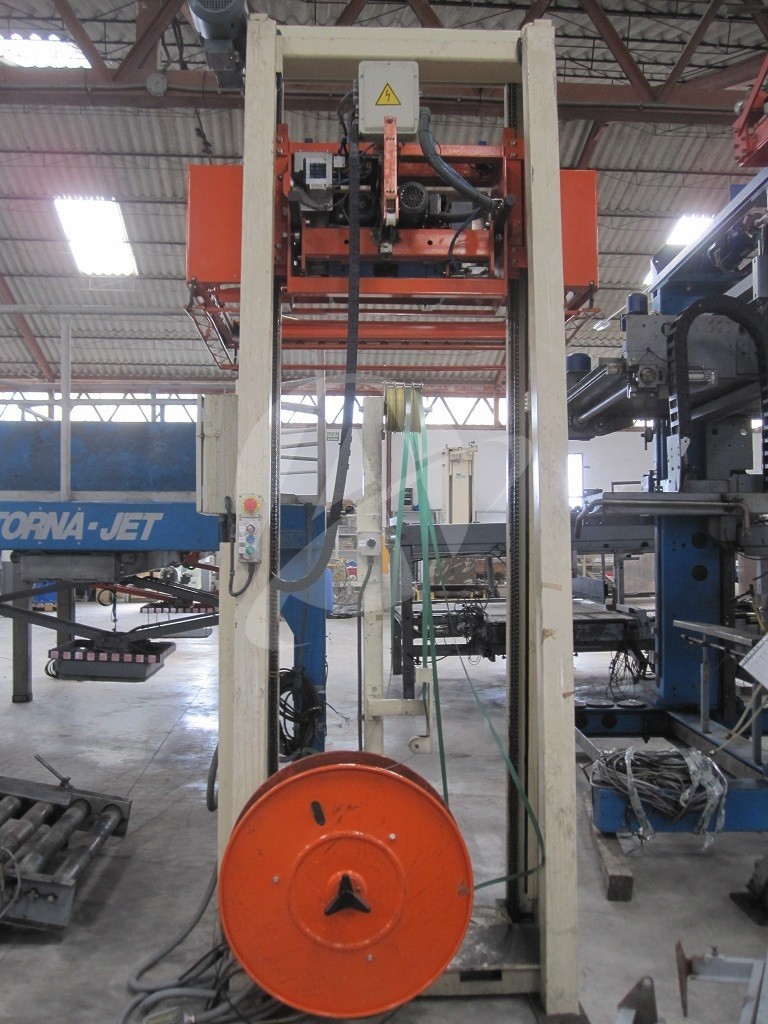

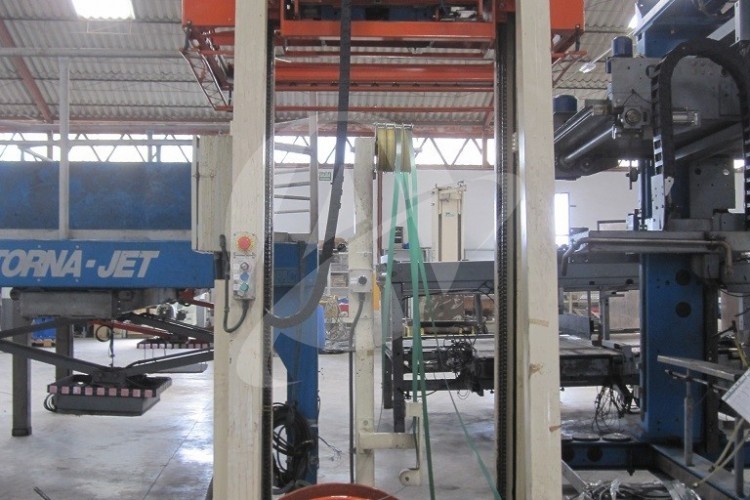

The machine structure is designed through tubular columns profile and sheet metal seals, very robust at the same time, guides the movement of the head and strapping channel guides

The structure allows the placement of various types of trolleys head, depending in the function of each head model, so the  measurements of the structure does not vary and the overall system performance does not vary either.

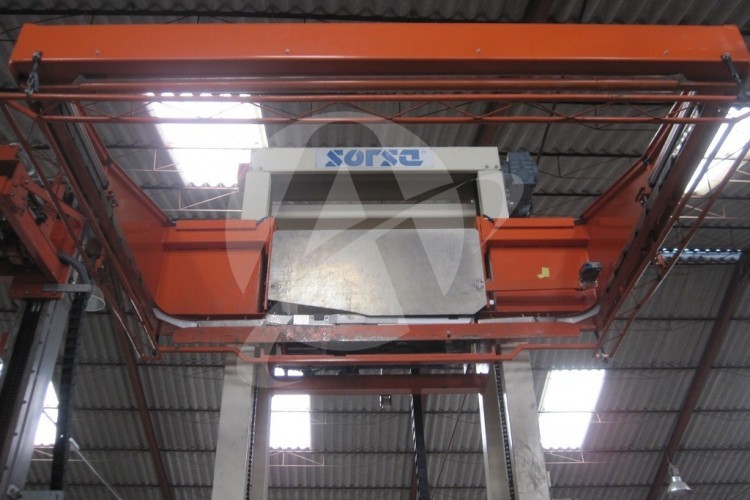

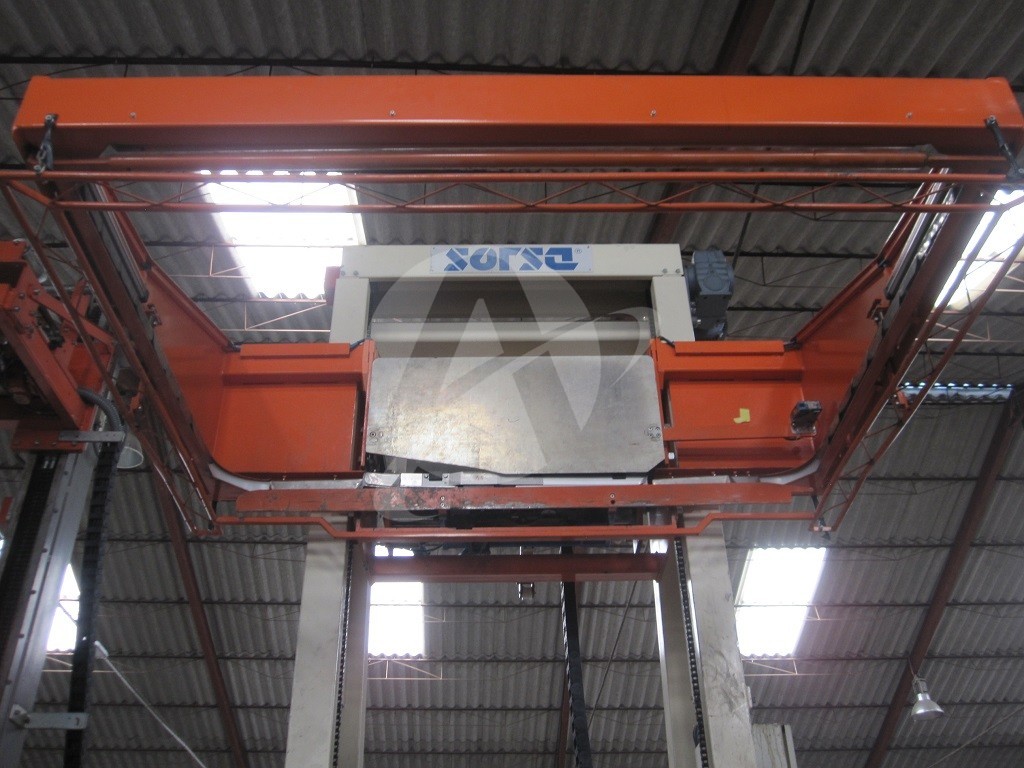

The head is installed so that it is tilting, ie, has a small lateral displacement when flected allowing better compensation of strap tension.

The head moving in the direction of approaching the pallet to be strapped, is carried through the air cylinder with a 300 mm. There positioning controls and ensuring good cast strip.

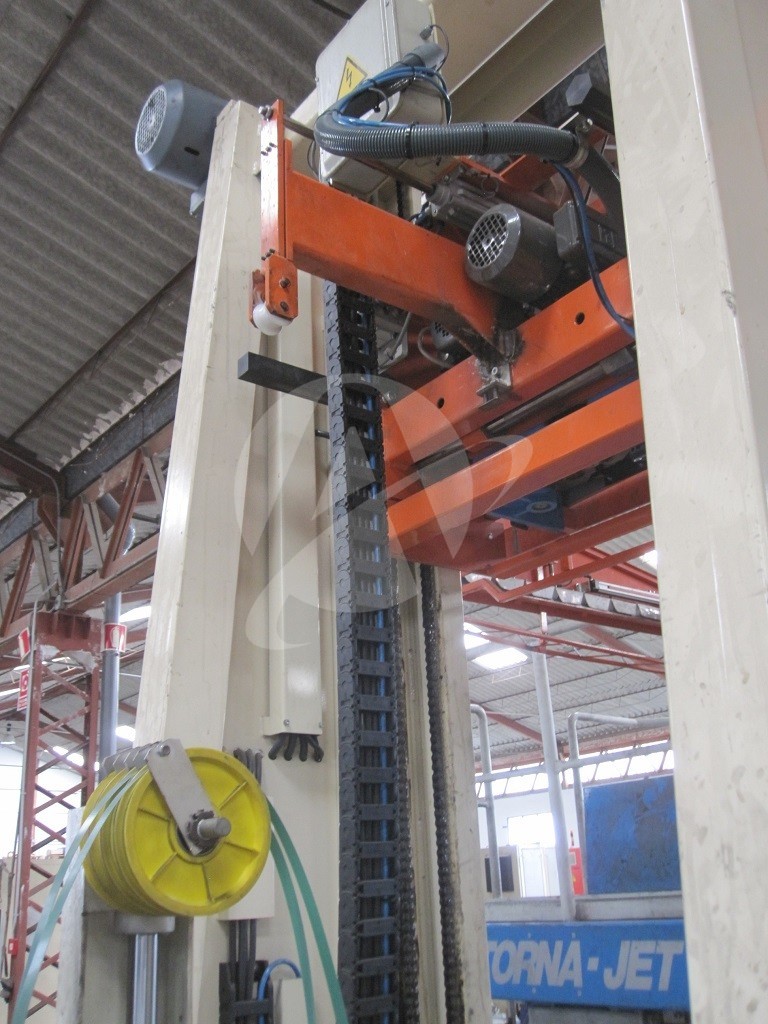

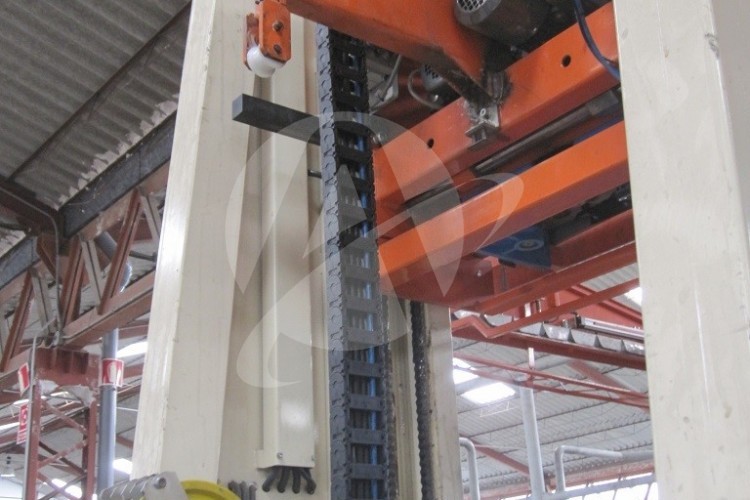

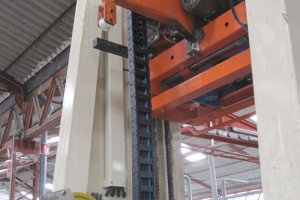

The up and down movement of the head is done with a gear motor with chain, sliding bearing carriage head holder by guides located in columns. The movements are positioned based encoder.

Strap guides constructed with teflon to facilitate movement of the strip, with a multi-opening curtains damped by springs. Includes safety probe.

Strip guide system via pneumatic cylinders, for a correct positioning of the strip in a horizontal position with minimal deflection and collapse.

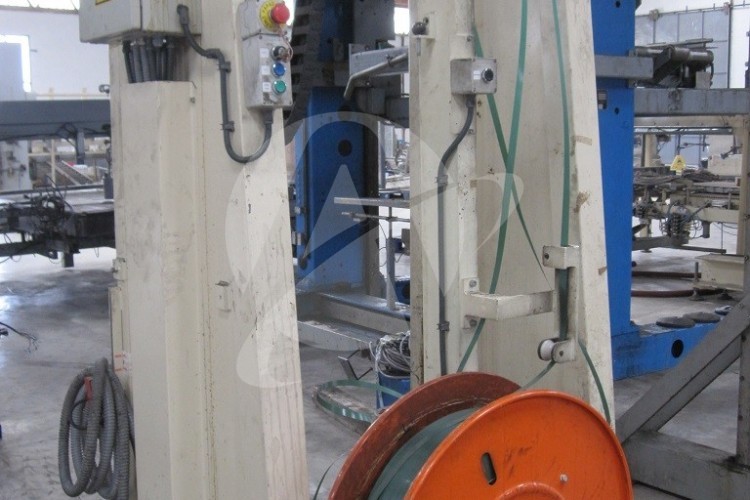

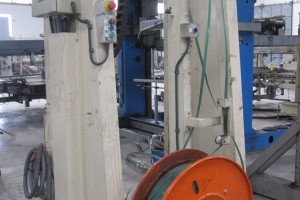

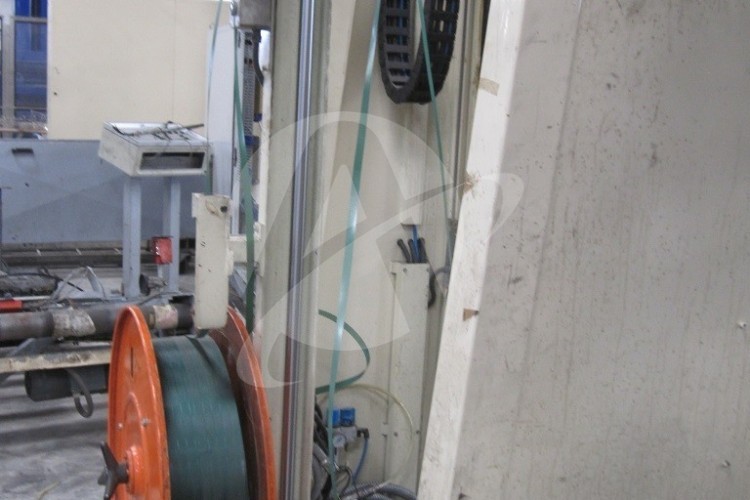

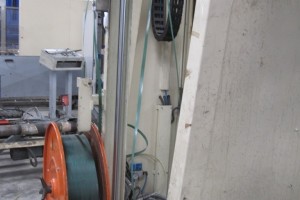

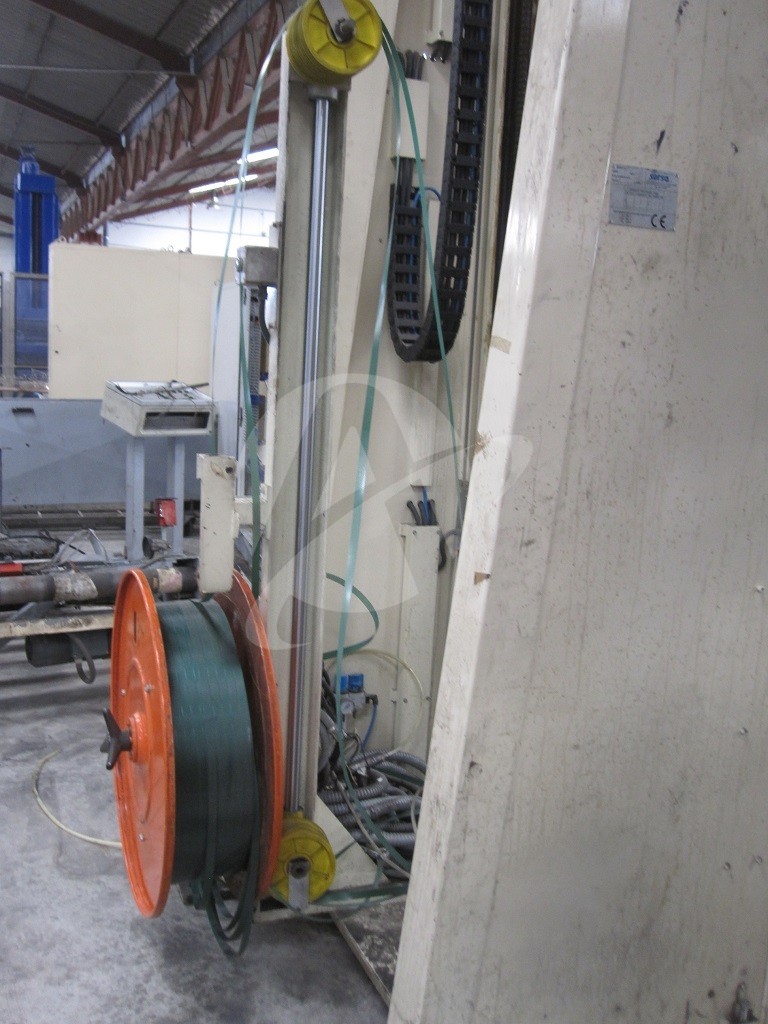

Reel holders motorized, feeder and strip with collection system controlled reception without excess strap folds with controlled receiving system without folds of excess strap. Suitable coil inner diameter of 406 mm., Maximum 670 mm outside. and width of 150 or 190 mm. depending on version.

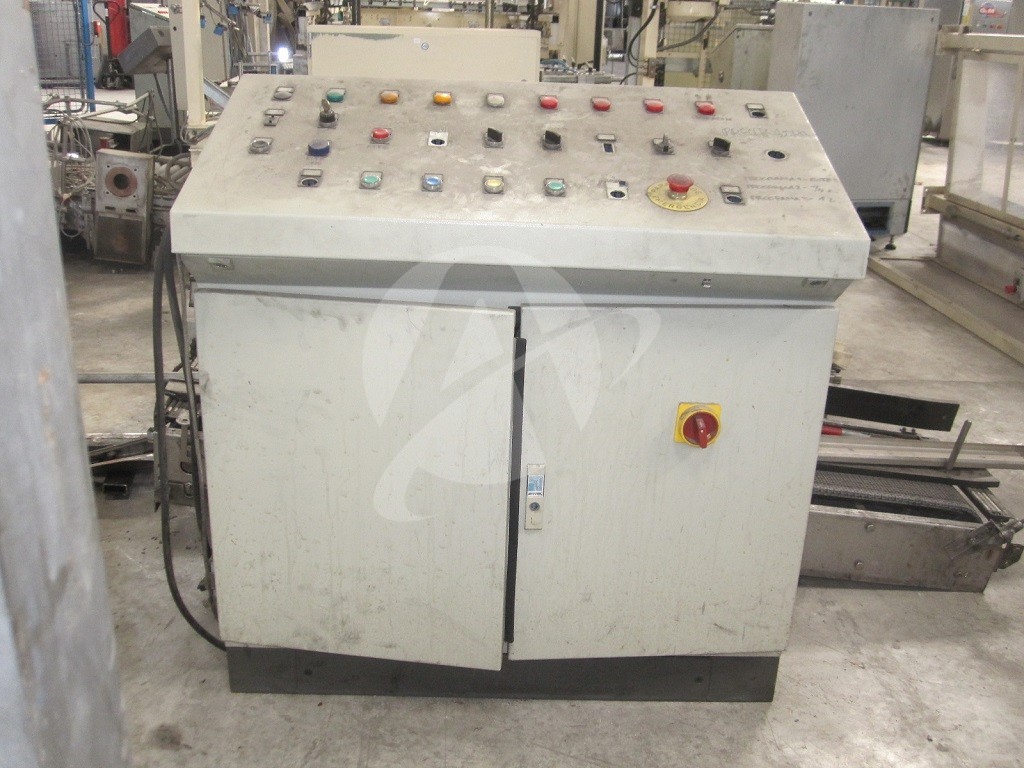

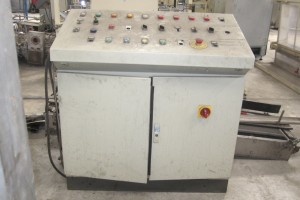

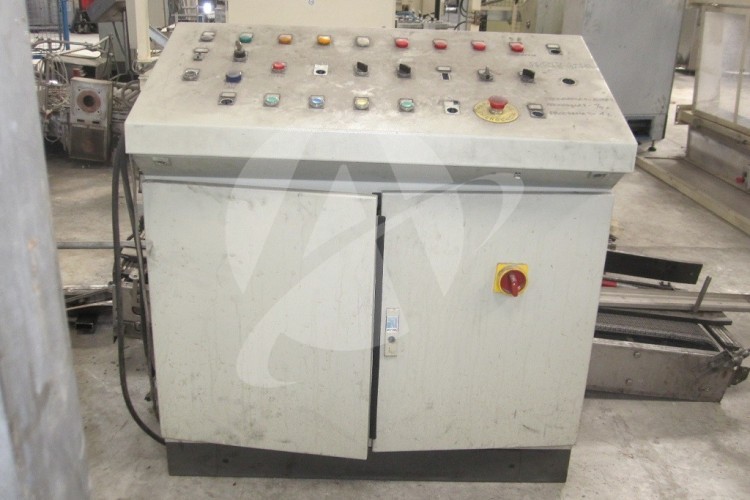

General electric panel for control and operation for the strapping on manual or automatic equipment with a programmable controller that allows up to ten programs incorporated strapping, which can be user-modified. Each program in turn supports a maximum of ten strapping. Buttons preparation machine.

General Technical Data:

-Power: 230/400 V 50 Hz three phase + neutral

-Operating voltage: 24 V DC

-Installed power: 4 Kw

-Total consumption: 2.2 Kw

-Air pressure: 6 bars

-Consumption per cycle 54 liters

-Approximate Weight: 1.200 kg.

-Type of strap: polypropylene / polyethylene

-Connection system: welding

-Tension strap: adjustable up to 180 kg.

-Strip launch speed: 4 m / s

-Strap Measures: 8 to 16 mm. width / from 0.6 to 1 mm. thick

-Minimum-Area strapping 100 mm.

-Minimun height for strapping; 1700 mm. from the floor

 Dimensions:

-machine: 2640 mm x 1680 mm x 3500 mm (H)

-electrical cabinet: 1000 mm x 500 mm x 1100 mm (H)
