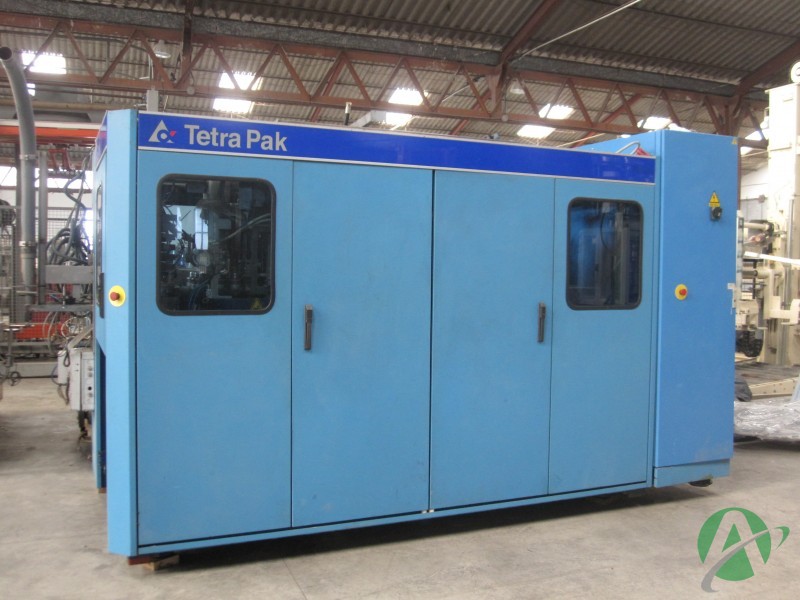

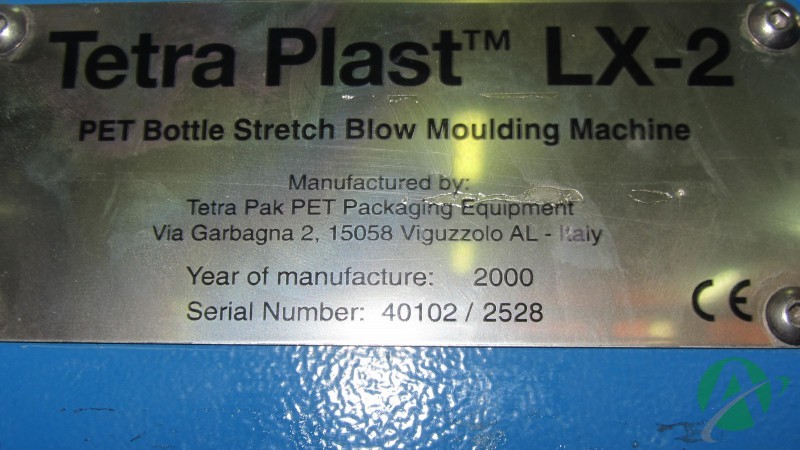

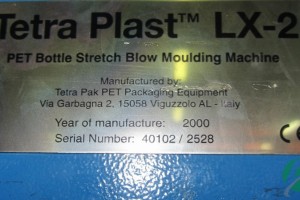

SOLD Tetra Pak Tetra Plast LX-2

SOLD

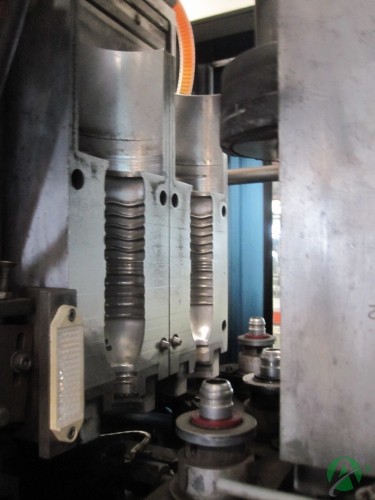

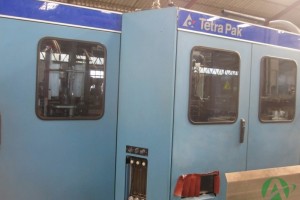

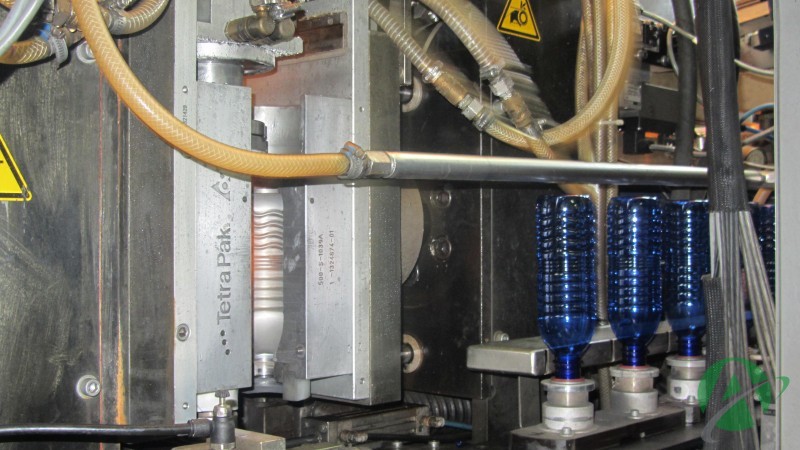

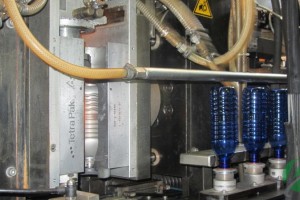

PET bottle stretch blow moulding machine with 2  molds,

Technical specifications:

-number of cavities: 2

-output, up to: 3000 BPH

Product dimension:

-preform length: 70-180 mm

-preform diameter: 14-46 mm

-neck ring diameter: 27-51mm

-maximum neck finish diameter: 38 mm

-neck height: 9-27 mm

-bottle height: 345 mm

-bottle diameter: 130 mm

-bottle volume: 0.25 – 3 litres

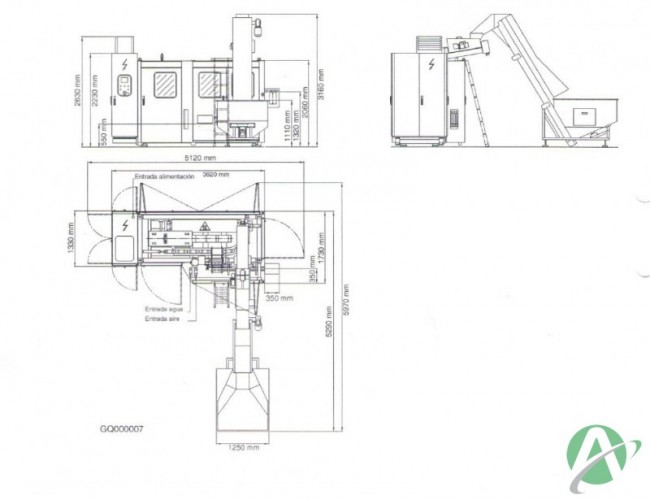

Equipment dimensions: LxWxH

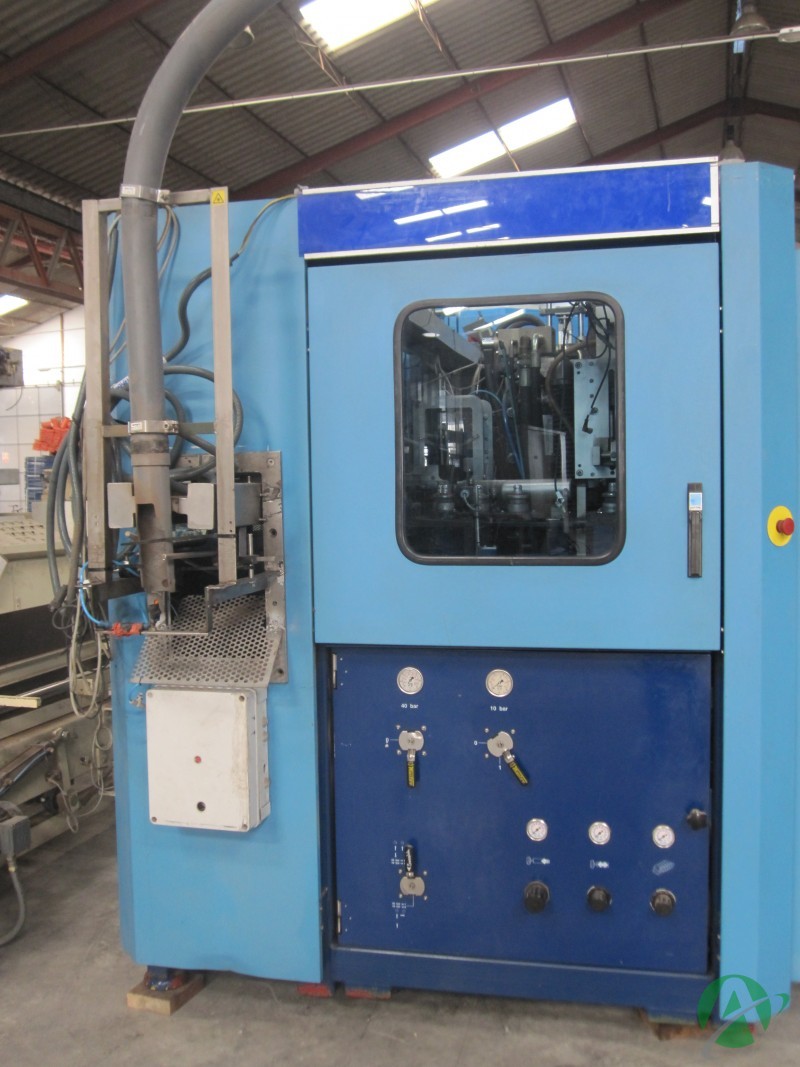

-Blowing module: 3620 x 1731 x 2631 mm

Weight

-Total: 4560 kg

-Blowing module section (with cabinet): 4200 kg

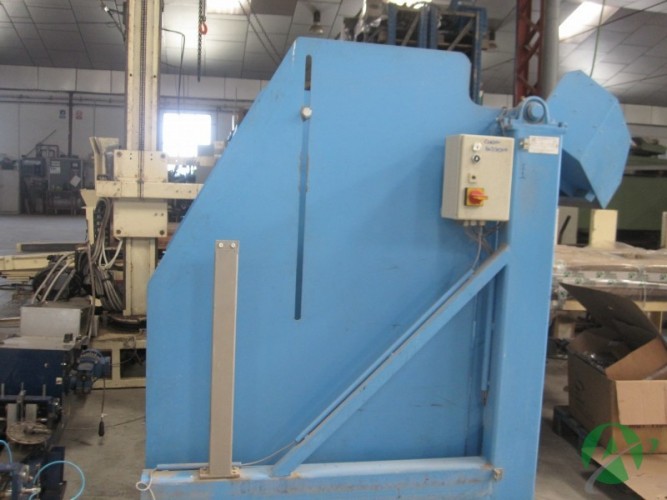

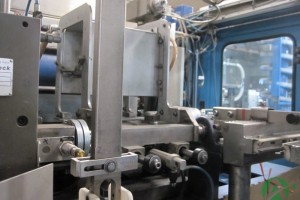

Preform infeed section: 360 kg

Noise level

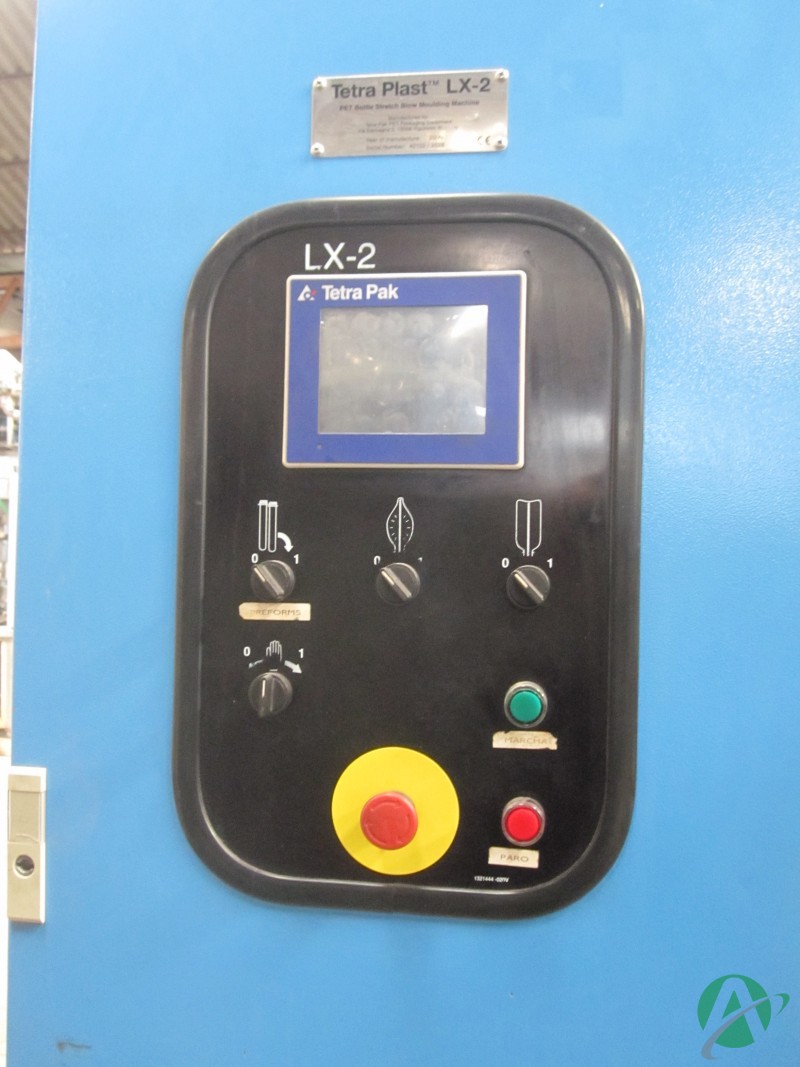

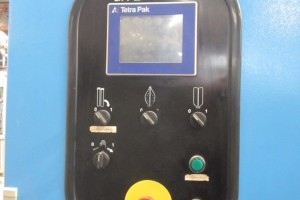

At control panel: 83 dBA

Utility requirements

Installed power

-Total installed power, standard set up: 53 kW

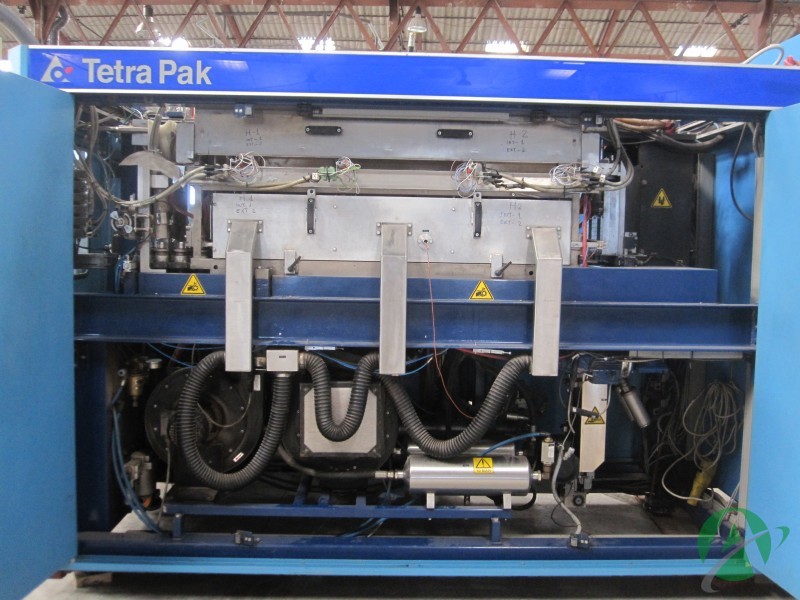

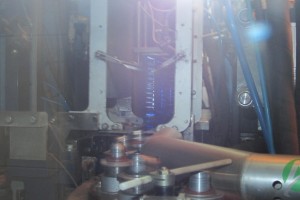

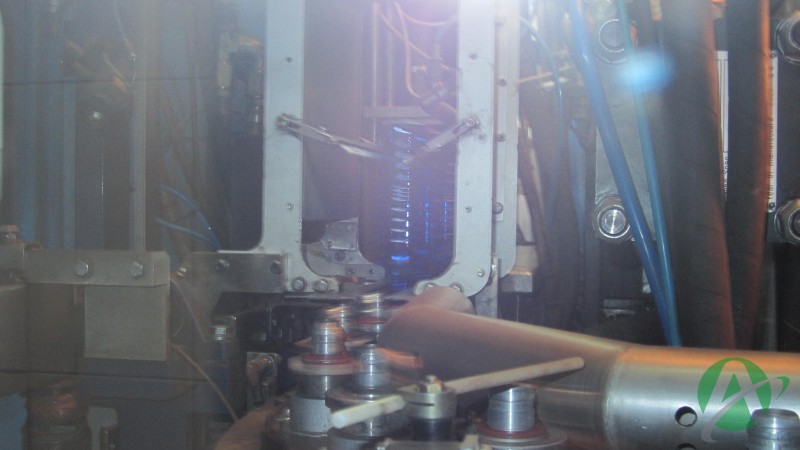

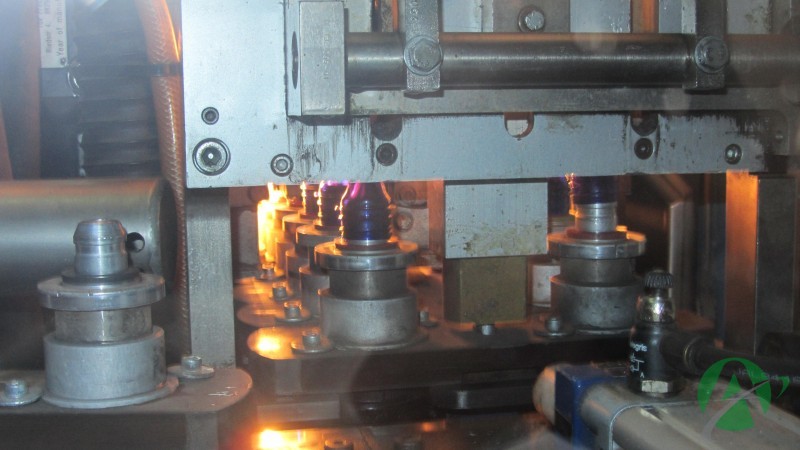

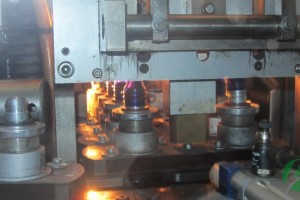

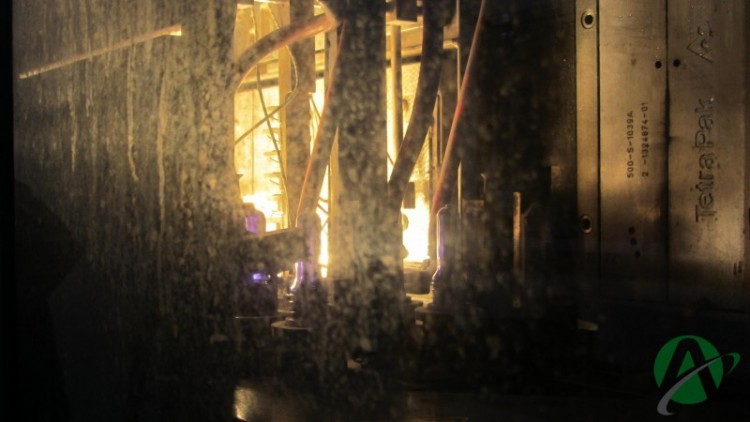

-Infra-red heating section – 9 zones: 44 kW

-Operation & feeding system section: 9 kW

-Power supply: 230/400 V ± 10%

-Frequency: 50 Hz ± 1%

Cooling water

-Cooling capacity: 9.000 kcal/h

-Water temperature: 8 -12 ºC

-Flow rate: up to 4.6 m³/h

-Pressure: 3 5 bar

Compressed air

Validity of these consumptions: at a temperature of 0ºC and at sea-level

40 bar air consumption

For 0.25-3 litres bottle: 119 up to 397 Nm³/h

7 bar (serviced air) consumption 93 Nm³/h

Bottle output for standard bottles

Bottle Volume-Average output

3 ltr - 2400

2-2.5 ltr – 2700

1.5 ltr – 2850

1 ltr – 2900

500 ml – 3000

250 – 300 ml- 3000

1 ltr oil finish -2500
